Bait and Switch

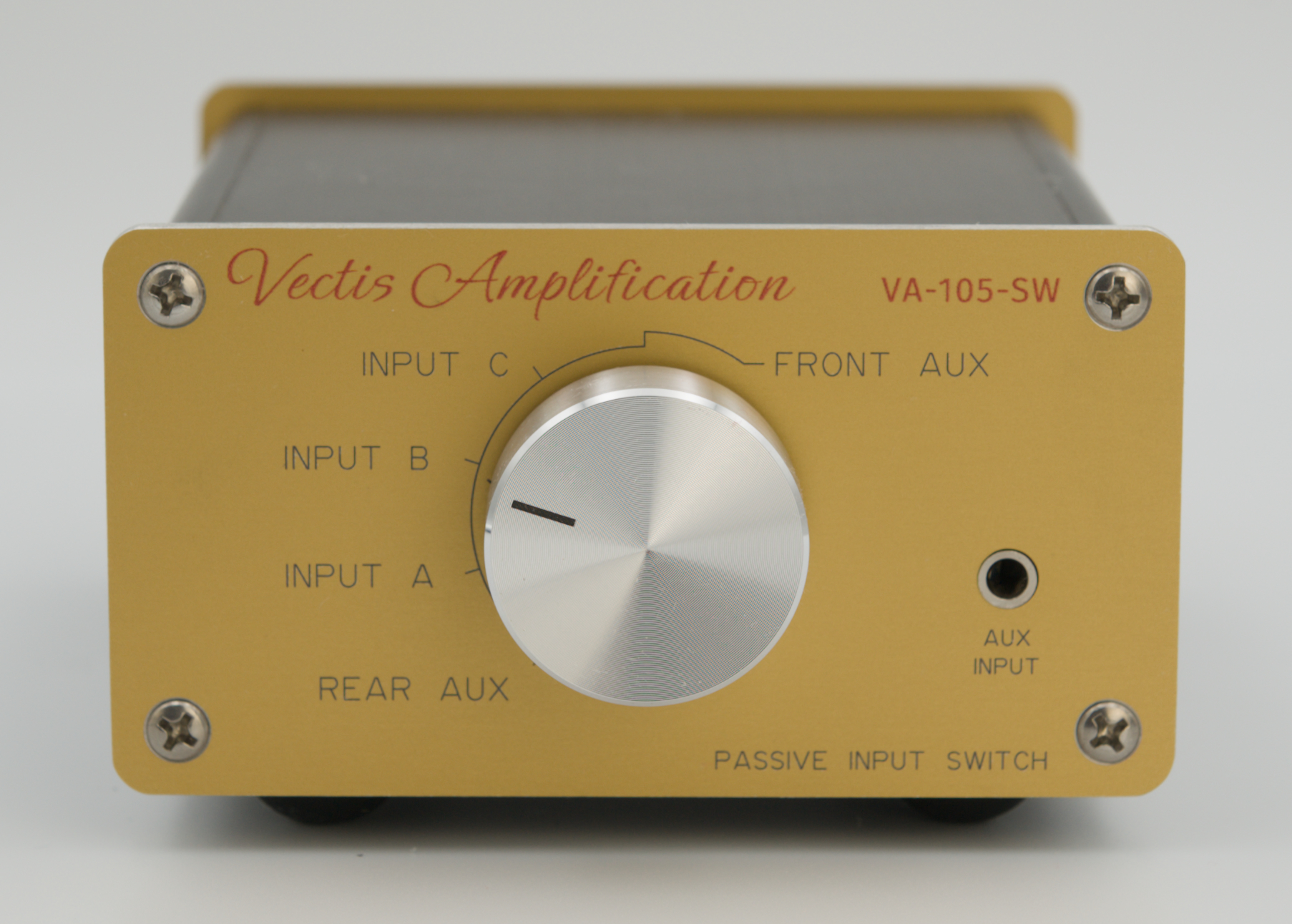

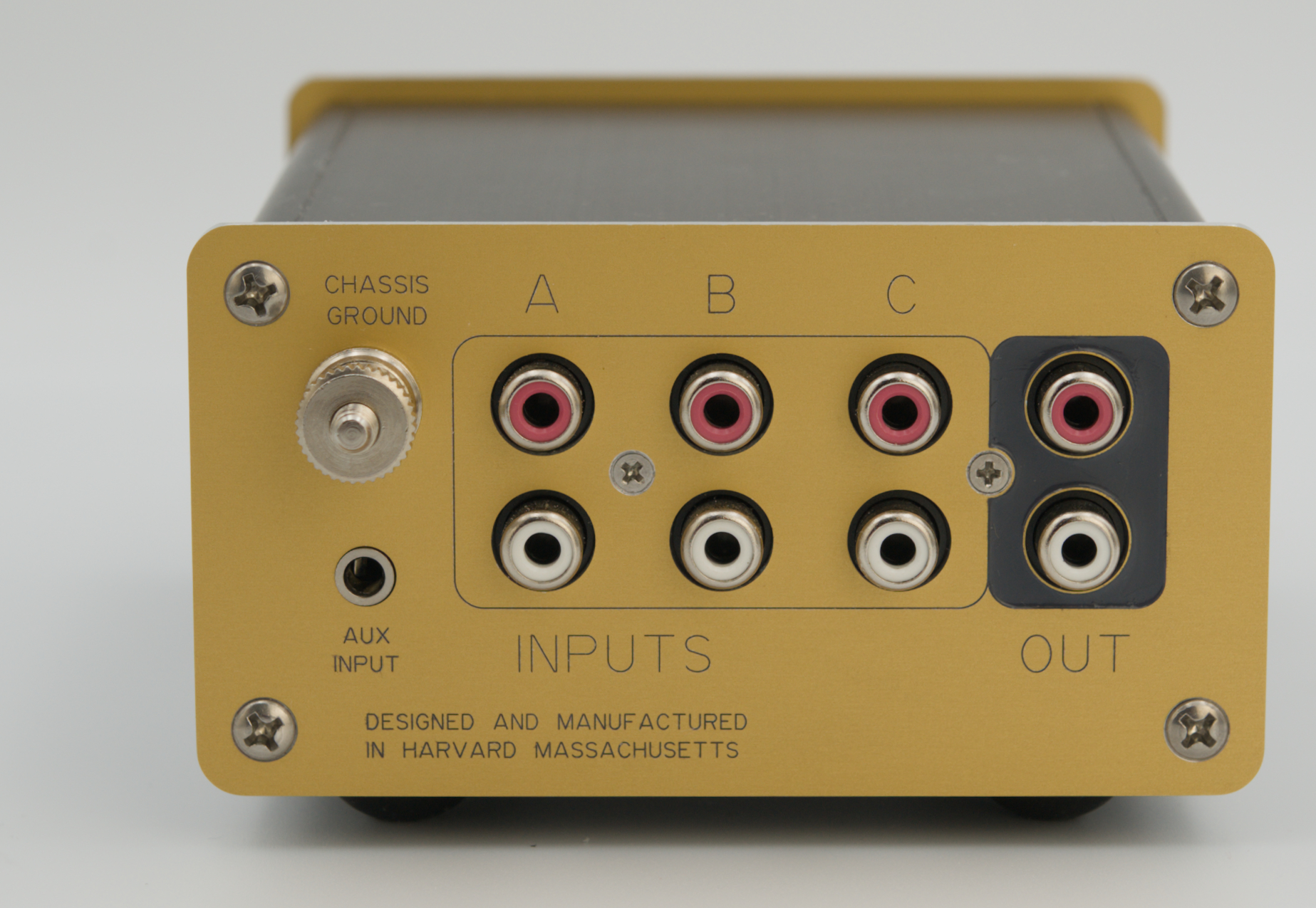

The VA-105-SW is a five input passive switch with a single output.  It provides three RCA inputs and independent front and rear 1/8" TRS aux inputs.  A dedicated grounding terminal is provided for the chassis which is decoupled from all the signal grounds.

Switching is accomplished using a Grayhill series 71 rotary switch that provides excellent crosstalk performance with an pleasant ergonomic.  Both the signal and ground are switched for each input, eliminating potential ground loops.  The VA-105-SW is housed in the same small footprint case as the VA-221-SI with a similar classic look.

INSERT CROSSTALK PERFORMANCE HERE
